MADE IN ITALY since 1972

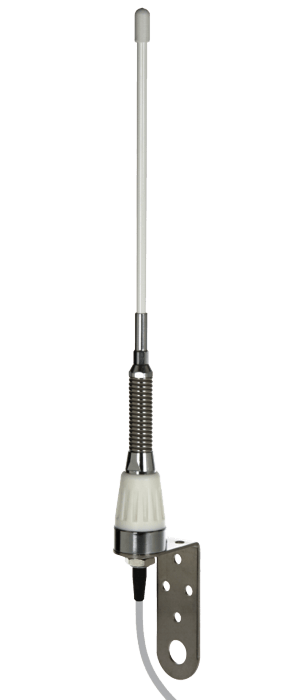

MC 380-400

Designed To Work Without Ground Plane
MC_380-400

Features:
Available version for 430-450 MHz band

Product Number:
P/N: 2216320.80 MC 380-400
Included:
Bracket: M-1 Bracket (P/N:2503503.00)
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 380-400 MHz No tuning required
Systems: TETRA
Gain: 0 dBd – 2.14 dBi
Max Power: 30 W (CW)
Grounding protection: DC-Ground
Cable lenght / type: 1.5 m (4.92 ft) / Low loss
Connector: TNC-male
Mechanical Data:
Materials: Chromed brass, Stainless steel, Fiberglass, Nylon
Height (approx): 354 mm / 1.16 ft
Weight (approx): 450 gr / 0.99 lb
Mounting type: Thru-Holes
