MADE IN ITALY since 1972

SY 906
SY 910

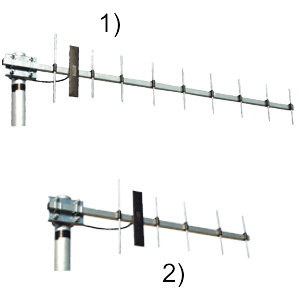

SY_906_SY_910
1) SY 910
2) SY 906
UP GRADED
Product Number:
P/N: 2109901.00 SY 906
P/N: 2110001.00 SY 910
Electrical Data:
Type: 6 & 10 elements Yagi
Radiation: Directional
Polarization: Linear vertical
Frequency range: 698-960 MHz No tuning required
Systems: GSM-R, GSM-900, ISM/SIGFOX/LoRa 868MHz
Gain: SY 906: 9.4 dBd – 11.5 dBi
SY 910: 12.9 dBd – 15 dBi
Max Power: 10 W (CW)
Grounding protection: DC-Ground
Connector: FME-female
Mechanical Data:
Materials: Aluminium, Nickel plated brass, PCB
Dimensions (approx):
SY 906:
210 x 595 x 60 mm / 0.69 x 1.95 x 0.2 ft
SY 910:
210 x 995 x 60 mm / 0.69 x 3.26 x 0.2 ft
Weight (approx):
SY 906:
410 gr / 0.9 lb
SY 910:
500 gr / 1.1 lb
Mounting type: On-Mast
Suitable Accessories:
Bracket: FT-4
