TURBO BLUE LINE series

TURBO_BLUE_LINE_series

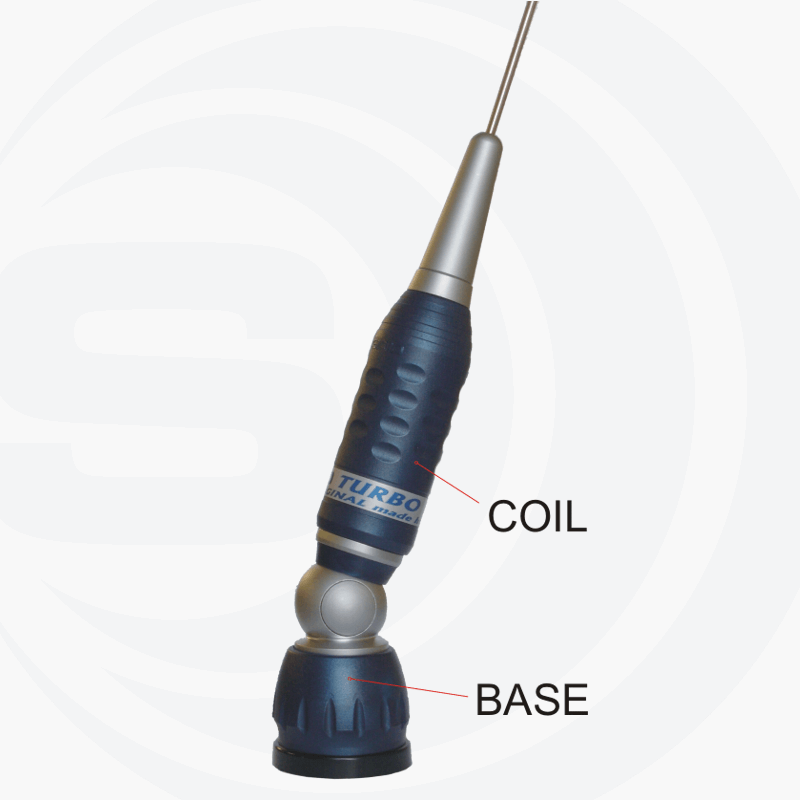

1) TURBO 1000, 2000, 3000 Blue Line
2) TURBO 800 S Blue Line
Product Number:
2201905.40 TURBO 800 S Blue Line
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)
2201905.41 TURBO 800 S PL Blue Line
2202005.40 TURBO 1000 Blue Line
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)
2202005.41 TURBO 1000 PL Blue Line
2202105.40 TURBO 2000 Blue Line
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)
2202105.41 TURBO 2000 PL Blue Line
2202405.40 TURBO 3000 Blue Line
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)
2202405.41 TURBO 3000 PL Blue Line
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27…28.5 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth:
TURBO 800 S Blue Line:
≥ 430KHz @ SWR ≤ 2
TURBO 800 S PL Blue Line:
≥ 430KHz @ SWR ≤ 2
TURBO 1000 Blue Line:
≥ 660KHz @ SWR ≤ 2
TURBO 1000 PL Blue Line:
≥ 660KHz @ SWR ≤ 2
TURBO 2000 Blue Line:
≥ 1.1MHz @ SWR ≤ 2
TURBO 2000 PL Blue Line:
≥ 1.1MHz @ SWR ≤ 2
TURBO 3000 Blue Line:
≥ 1.6MHz @ SWR ≤ 2
TURBO 3000 PL Blue Line:
≥ 1.6MHz @ SWR ≤ 2
Max Power: 200 Watts (CW) continuous
1000 Watts (CW) short time
Grounding protection: DC-Ground
Cable lenght / type:
TURBO 800 S Blue Line:
4 m (13.12 ft) / RG58
TURBO 800 S PL Blue Line:
0 cm (0 in) / Not supplied
TURBO 1000 Blue Line:
4 m (13.12 ft) / RG58
TURBO 1000 PL Blue Line:
0 cm (0 in) / Not supplied
TURBO 2000 Blue Line:
4 m (13.12 ft) / RG58
TURBO 2000 PL Blue Line:
0 cm (0 in) / Not supplied
TURBO 3000 Blue Line:
4 m (13.12 ft) / RG58
TURBO 3000 PL Blue Line:
0 cm (0 in) / Not supplied
Connector:
TURBO 800 S Blue Line:
Not supplied
TURBO 800 S PL Blue Line:
UHF-male (PL-259)
TURBO 1000 Blue Line:
Not supplied
TURBO 1000 PL Blue Line:
UHF-male (PL-259)
TURBO 2000 Blue Line:
Not supplied
TURBO 2000 PL Blue Line:
UHF-male (PL-259)
TURBO 3000 Blue Line:
Not supplied
TURBO 3000 PL Blue Line:
UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
TURBO 800 S Blue Line:
840 mm / 2.76 ft
TURBO 800 S PL Blue Line:
840 mm / 2.76 ft
TURBO 1000 Blue Line:
1150 mm / 3.77 ft
TURBO 1000 PL Blue Line:
1150 mm / 3.77 ft
TURBO 2000 Blue Line:
1450 mm / 4.76 ft
TURBO 2000 PL Blue Line:
1450 mm / 4.76 ft
TURBO 3000 Blue Line:
1710 mm / 5.61 ft
TURBO 3000 PL Blue Line:
1710 mm / 5.61 ft
Weight (approx): 580 gr / 1.28 lb

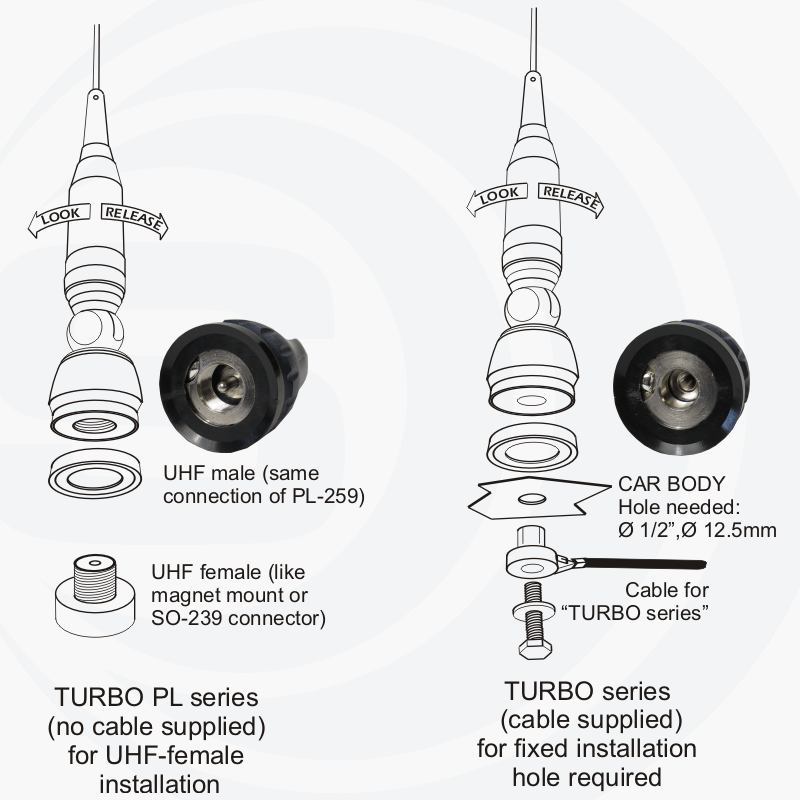

Mounting type:
TURBO 800 S Blue Line:
Thru-Hole
TURBO 800 S PL Blue Line:
On-Connector
TURBO 1000 Blue Line:
Thru-Hole
TURBO 1000 PL Blue Line:
On-Connector
TURBO 2000 Blue Line:
Thru-Hole
TURBO 2000 PL Blue Line:
On-Connector
TURBO 3000 Blue Line:
Thru-Hole
TURBO 3000 PL Blue Line:
On-Connector
Suitable Accessories:
Magnetic Mount: PM-100 PL (P/N:2502502.05)
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
