MADE IN ITALY since 1972

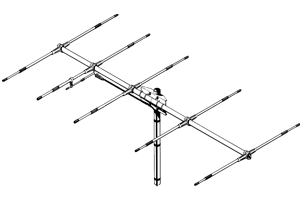

SY 50-5

NEW PRODUCT
Product Number:
P/N: 2106901.00/5 SY 50-5
Electrical Data:
Type: 5 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range: 50 ... 54 MHz Tunable
Systems: 6m-HAM
Gain: 8.4 dBd - 10.5 dBi
Max Power: 600 W (CW)
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Galvanized steel, Zamak
Dimensions (approx): 3038 x 4030 x 100 mm / 9.97 x 13.22 x 0.33 ft
Weight (approx): 6100 gr / 13.45 lb
Mounting type: On-Mast
