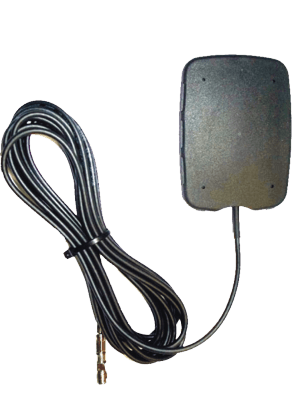

INGLASS MULTIBAND

Product Number:
2215902/3FME INGLASS MULTIBAND FME
2215902/3SMA INGLASS MULTIBAND SMA
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 868-960 MHz & 1710-2170MHz No tuning required
Systems: GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, ISM/SIGFOX/LoRa 868MHz, DECT
Gain: 0 dBd, 2.15 dBi
Max Power: 10 W (CW)
Cable lenght / type: 3 m (9.84 ft) / RG174
Connector:
INGLASS MULTIBAND FME:
FME-female
INGLASS MULTIBAND SMA:
SMA-male
Mechanical Data:
Materials: Copper, Thermoplastic UV stabilized, PCB

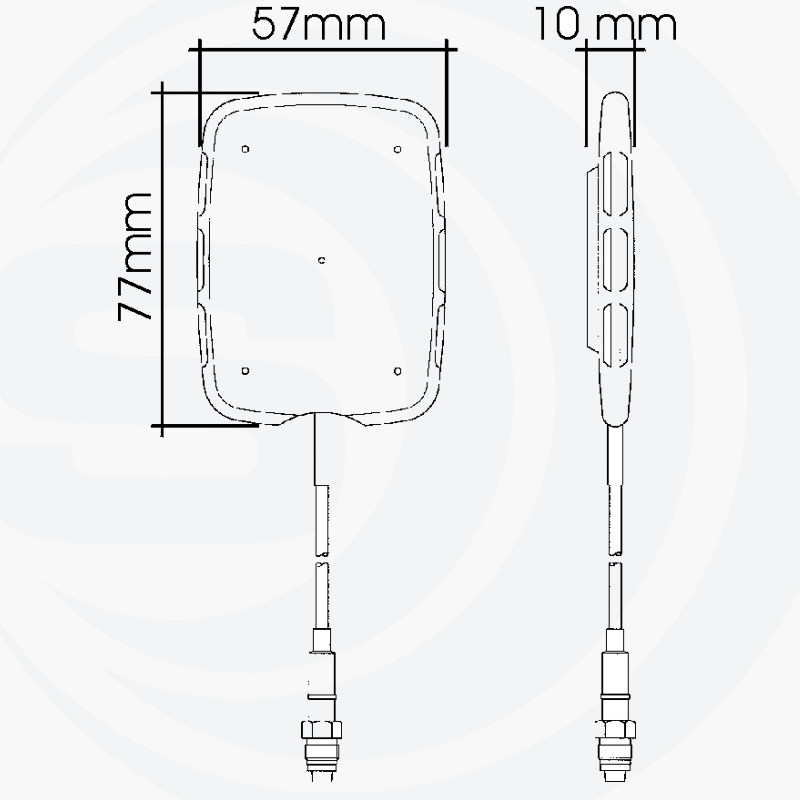

Dimensions (approx): 57 x 77 x 10 mm / 0.19 x 0.25 x 0.03 ft
Weight (approx): 70 gr / 0.15 lb

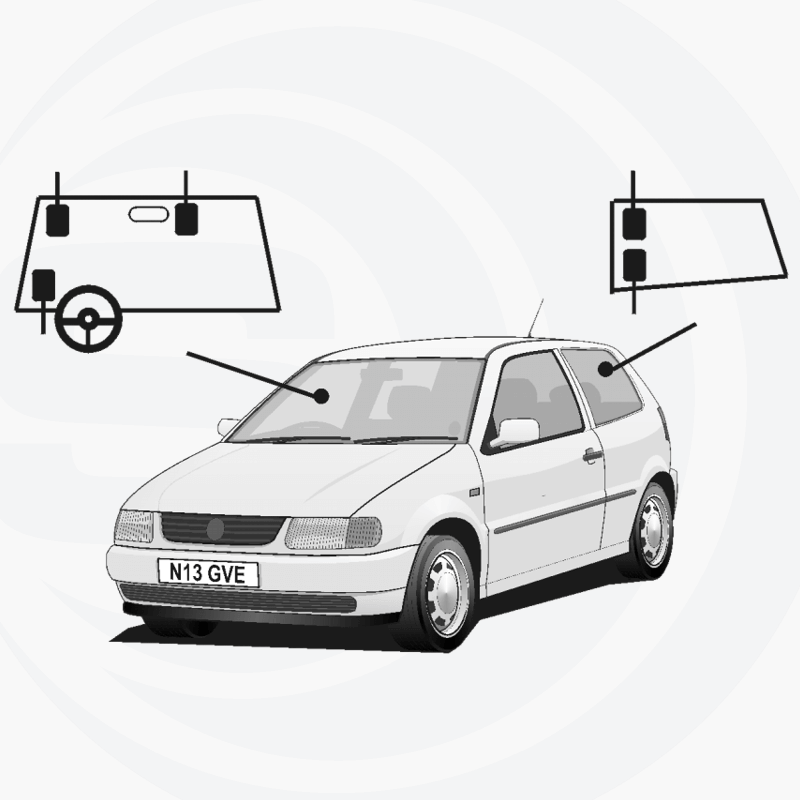

Mounting type: On-Glass, Adhesive Mount
