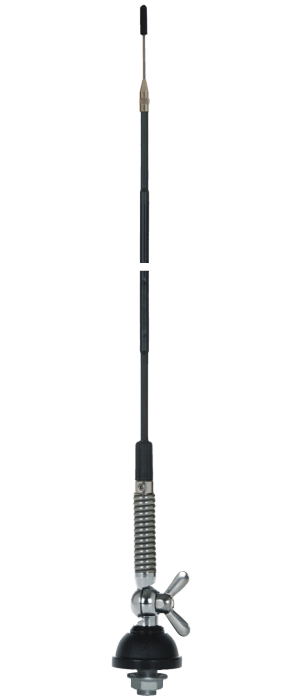

T 27

Product Number:
2201015.01 T 27
Included:
Hole mount: N Chrome (P/N:2500102.01)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
Screw Bolt
Electrical Data:
Type: Central loaded
Radiation: Omnidirectional
Polarization: Linear vertical

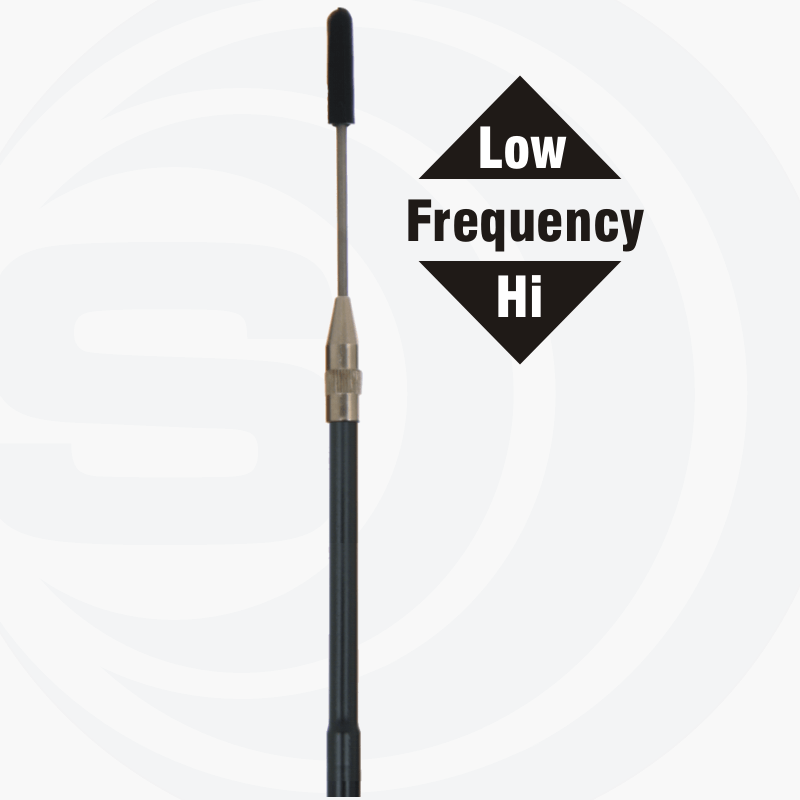

Frequency range: 26.5 … 28.5 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth: ≥ 440KHz @ SWR ≤ 2
Max Power: 20 Watts (CW) continuous
100 Watts (CW) short time
Cable lenght / type: 4 m (13.12 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Copper, Stainless steel, Fiberglass
Height (approx): 555 mm / 1.82 ft
Weight (approx): 330 gr / 0.73 lb
Mounting type: Thru-Hole
Suitable Accessories:
Hole mount: NE Chrome (P/N:2500202.01)
Magnetic Mount: PM-100 S (P/N:2502502.01)
Magnetic Mount: PM-125 S (P/N:2502602.01)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
