MADE IN ITALY since 1972

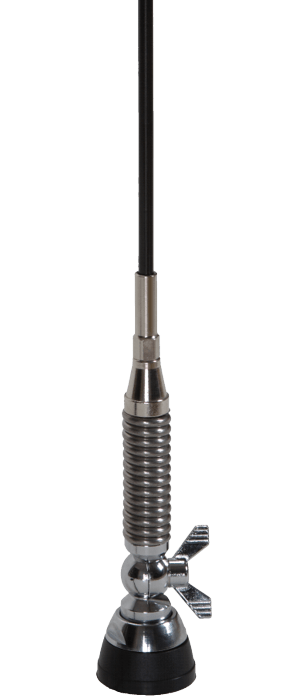

MG 75


Product Number:
P/N: 2205824.28 MG 75 S
Included:
Hole mount: S
Screw Bolt
P/N: 2205824.32 MG 75 SL
Included:
Hole mount: SL
Wing Bolt
Electrical Data:
Type: 1/4 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 66 … 88 MHz Tunable
Systems: VHF Low-band (66-88MHz)
Gain: 0 dB ref. to a λ/4 whip
Bandwidth: ≥ 9MHz @ SWR ≤ 2
Max Power: 100 W (CW)
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Fiberglass, Nylon
Height (approx): 1110 mm / 3.64 ft
Weight (approx): 500 gr / 1.1 lb
Mounting type: Thru-Hole
Suitable Accessories:
Magnetic Mount: PM-125 S (P/N:2502602.01)
