MADE IN ITALY since 1972

GPF 703 N

NEW PRODUCT
Product Number:
P/N: 2106920.00 GPF 703 N
Electrical Data:

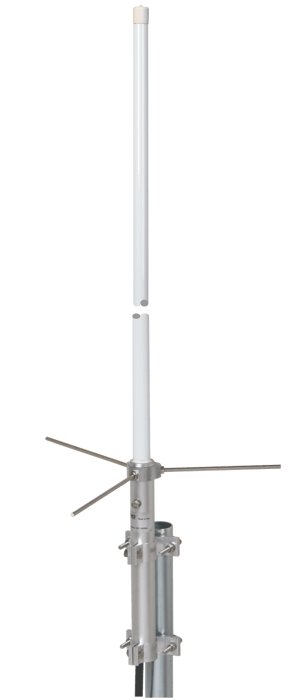

Type: 3 X 5/8 λ ground plane colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 370...510 MHz Tunable
Systems: 70cm-HAM, TETRA, CDMA-450, ISM-433MHz
Gain: 4.6 dBd – 6.75 dBi
Max Power: 200 W (CW)
Grounding protection: DC-Ground

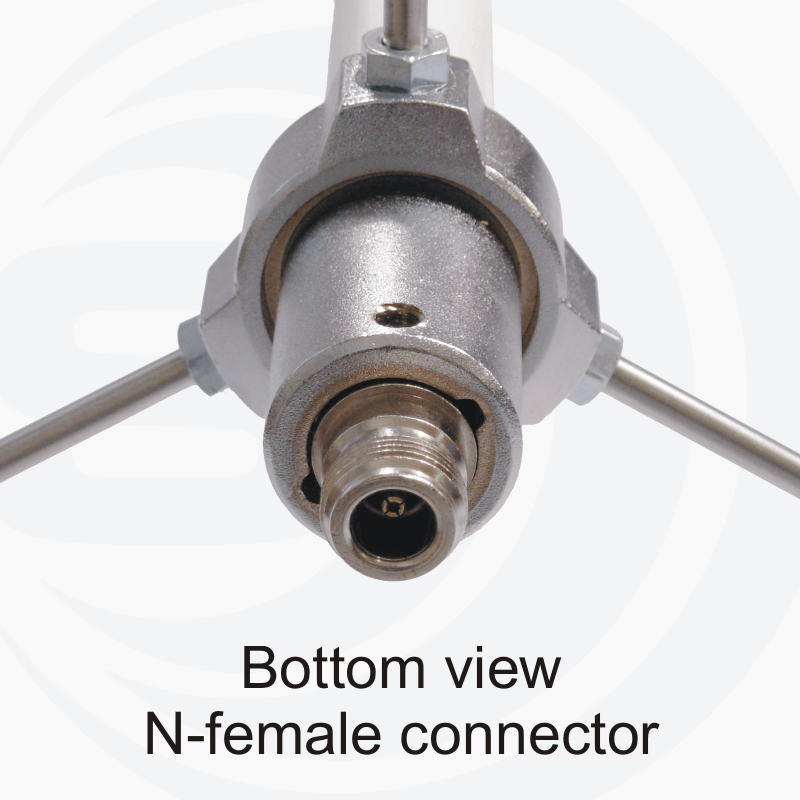

Connector: N-female
Mechanical Data:
Materials: Aluminium, Brass, Stainless steel, Fiberglass
Height (approx): 2230 mm / 7.32 ft
Weight (approx): 1160 gr / 2.56 lb
Mounting type: On-Mast
