MADE IN ITALY since 1972

HP 7000
HP 7000 C

HP_7000_HP_7000_C

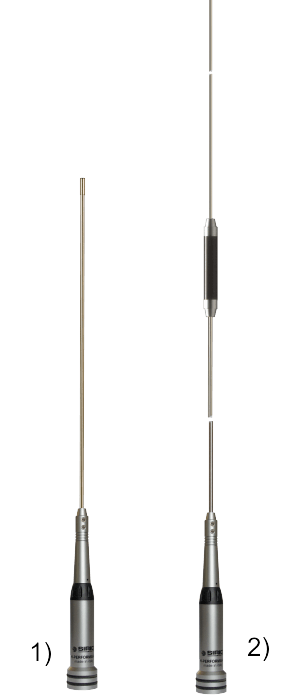

1) HP 7000
2) HP 7000 C

Features:
Available Versions for USA ham band (445 MHz). MOQ upon request

Product Number:
P/N: 2210505.05 HP 7000
P/N: 2210505.05/USA HP 7000 USA
P/N: 2210605.05 HP 7000 C
P/N: 2210605.05/USA HP 7000 C USA
Electrical Data:
Type: HP 7000: 5/8 λ
HP 7000 C: 2 x 5/8 λ colinear
Ground plane independent
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
HP 7000:
426-442 MHz No tuning required
HP 7000 USA:
437-453 MHz No tuning required
HP 7000 C:
429-440 MHz No tuning required
HP 7000 C USA:
439-451 MHz No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, ISM/SIGFOX/LoRa 433MHz
Gain: HP 7000: 2 dB ref. to a λ/4 whip
HP 7000 C: 5 dB ref. to a λ/4 whip
Max Power: 80 W (CW)
Grounding protection: DC-Ground
Connector: UHF-male (PL-259)
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
HP 7000:
435 mm / 1.43 ft
HP 7000 USA:
435 mm / 1.43 ft
HP 7000 C:
990 mm / 3.25 ft
HP 7000 C USA:
990 mm / 3.25 ft
Weight (approx):
HP 7000:
250 gr / 0.55 lb
HP 7000 USA:
250 gr / 0.55 lb
HP 7000 C:
320 gr / 0.71 lb
HP 7000 C USA:
320 gr / 0.71 lb
Mounting type: On-Connector
Suitable Accessories:
Magnetic Mount: PM-100 PL (P/N:2502502.05)
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Cable: HP-AC/U Angular Connector (P/N:2510805.00)
