MADE IN ITALY since 1972

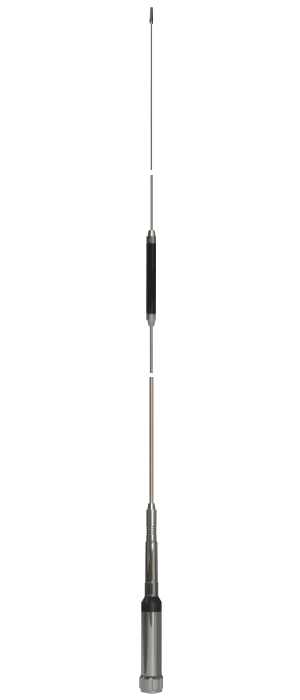

ZN-22C

NEW PRODUCT
Product Number:
P/N: 2210805.05 ZN-22C
Electrical Data:
Type: 2 x 5/8 λ
Ground plane independent
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 143–147 MHZ @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, ORBCOMM M2M
Gain: 6.5 dB
Bandwidth: ≥ 9MHz @ SWR ≤ 2
Max Power: 300 W (CW)
Connector: UHF-male (PL-259)
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx): 2430 mm / 7.97 ft
Weight (approx): 530 gr / 1.17 lb
Mounting type: On-Connector
