MADE IN ITALY since 1972

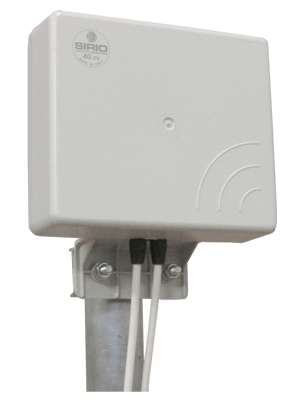

SMP 4G LTE MiMo

Compact Panel 2x MiMo
NEW PRODUCT
Product Number:
P/N: 2111403.00 SMP 4G LTE MiMo
Electrical Data:
Type: Mini Panel
Radiation: Directional
Polarization: Linear vertical
Frequency range: 790-960 MHz & 1700-2700 MHz No tuning required
Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM-868MHz, WiFi-2.4GHz
Gain: 5 dBi @ 790-960 MHz
8 dBi @ 1.71-2.7 GHz
Max Power: 20 Watts @ 790-960 MHz
8 Watts @ 1.71-2.7 GHz
Cable lenght / type: 30 cm (11.81 in) / RG316 PTFE
Connector: 2 x SMA-male
Mechanical Data:
Materials: Galvanized steel, Thermoplastic UV stabilized, PCB
Dimensions (approx): 153 x 134 x 46 mm / 0.5 x 0.44 x 0.15 ft
Weight (approx): 400 gr / 0.88 lb
Mounting type: On-Mast, On-Wall
Suitable Accessories:
Tilting bracket for SMP series
