MADE IN ITALY since 1972

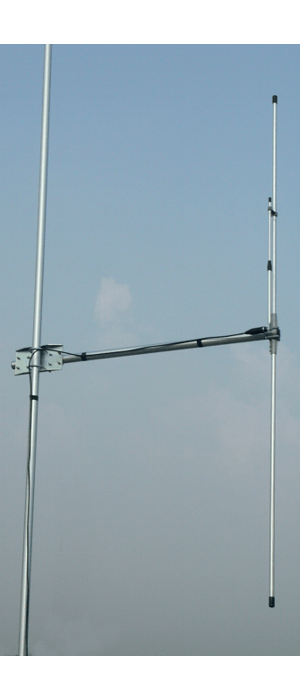

SD 68
SD 78


Product Number:
P/N: 2108801/68 SD 68
P/N: 2108801/78 SD 78
Electrical Data:
Type: 1/2 λ
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
SD 68:
68-78 MHz No tuning required
SD 78:
78-88 MHz No tuning required
Systems: VHF Low-band (66-88MHz)
Gain: 1.85 dBd - 4 dBi (vertical polarization only)
Max Power: 350 W (CW)
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Galvanized steel, Zamak
Dimensions (approx):
SD 68:
1915 x 1065 mm / 6.28 x 3.49 ft
SD 78:
1675 x 1065 mm / 5.5 x 3.49 ft
Weight (approx):
SD 68:
2020 gr / 4.45 lb
SD 78:
1980 gr / 4.37 lb
Mounting type: On-Mast
