SMS-1.93×3-9

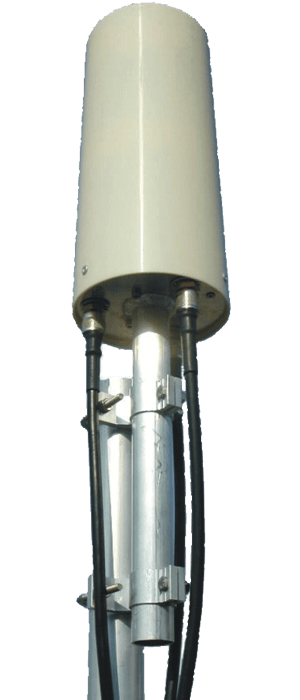

Sector antenna
SMS-193x3-9

Product Number:
P/N: 2130703.00 SMS-1.93×3-9
Electrical Data:
Type: Multi sector array
Radiation: Directional
Polarization: Linear vertical
Frequency range: 1880-1980 MHz No tuning required
Systems: DECT
Gain: 7.2 dBd – 9.3 dBi
Max Power: 20 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Aluminium, Stainless steel, Thermoplastic UV stabilized, PCB
Dimensions (approx): 600 x Ø136 mm / 1.97 x Ø0.45 ft
Weight (approx): 1150 gr / 2.54 lb
Mounting type: On-Mast
