MADE IN ITALY since 1972

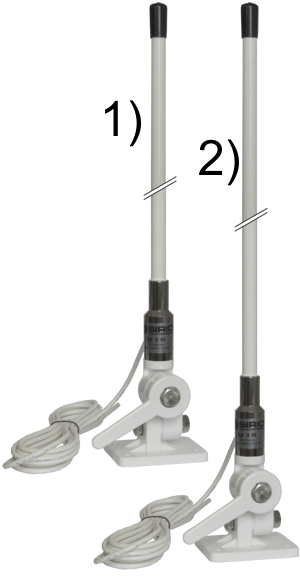

SB 3 M

Designed To Work Without Ground Plane
SB_3_M

Product Number:
P/N: 2300820.83 SB 3 M
Included:
Bracket: M-8 Marine
Electrical Data:
Type: 3/4 λ J-pole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 155.5 - 160 MHz No tuning required
Systems: VHF Marine Band
Gain: 2 dBd – 4.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Cable lenght / type: 5 m (16.4 ft) / White RG58
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Fiberglass, Nylon
Height (approx): 1480 mm / 4.86 ft
Weight (approx): 750 gr / 1.65 lb
Mounting type: Thru-Holes
