SNAKE 27
MINI SNAKE 27

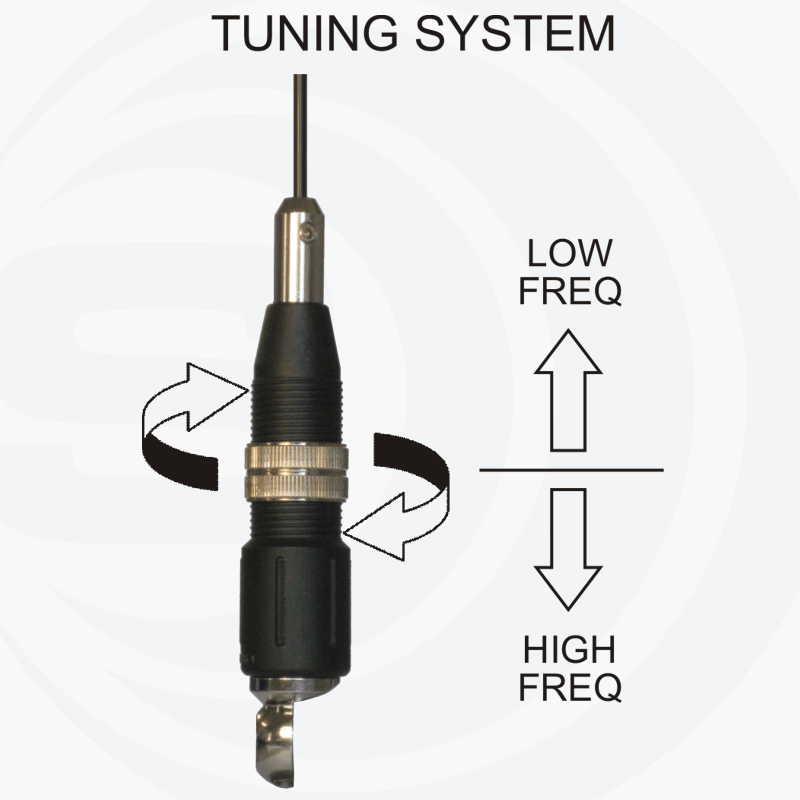

Tunable By Screwing The Metallic Ring

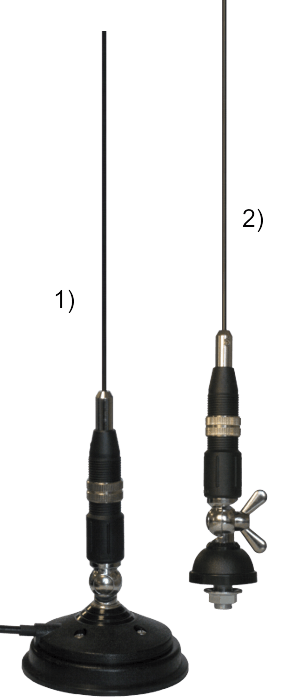

MINI_SNAKE_27_SNAKE_27
1) MINI SNAKE 27 MAG
2) SNAKE 27, MINI SNAKE 27
Product Number:
2204306.01 SNAKE 27
Included:
Hole mount: N Chrome (P/N:2500102.01)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
Screw Bolt
2204406.01 MINI SNAKE 27
Included:
Hole mount: N Chrome (P/N:2500102.01)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
Screw Bolt
2204406.61 MINI SNAKE 27 MAG
Included:
Magnetic Mount: PM-100 S (P/N:2502502.01)

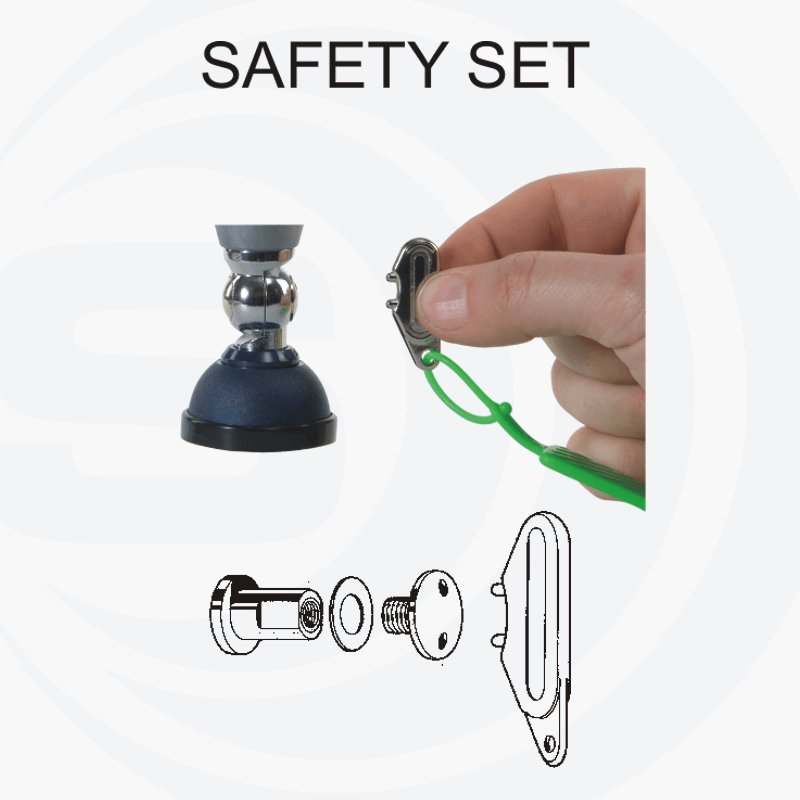

Safety set
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.5 … 27.4 MHz Tunable
Systems: CB 27MHz
Bandwidth:
SNAKE 27:
≥ 1.8MHz @ SWR ≤ 2
MINI SNAKE 27:
≥ 1MHz @ SWR ≤ 2
MINI SNAKE 27 MAG:
≥ 1MHz @ SWR ≤ 2
Max Power: 10 Watts (CW) continuous
40 Watts (CW) short time
Cable lenght / type:
SNAKE 27:
4 m (13.12 ft) / RG58
MINI SNAKE 27:
4 m (13.12 ft) / RG58
MINI SNAKE 27 MAG:
3.6 m (11.81 ft) / RG58
Connector:
SNAKE 27:
Not supplied
MINI SNAKE 27:
Not supplied
MINI SNAKE 27 MAG:
UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Brass, Stainless steel, Nylon
Height (approx):
SNAKE 27:
1125 mm / 3.69 ft
MINI SNAKE 27:
650 mm / 2.13 ft
MINI SNAKE 27 MAG:
650 mm / 2.13 ft
Weight (approx):
SNAKE 27:
350 gr / 0.77 lb
MINI SNAKE 27:
350 gr / 0.77 lb
MINI SNAKE 27 MAG:
770 gr / 1.7 lb
Mounting type:
SNAKE 27:
Thru-Hole
MINI SNAKE 27:
Thru-Hole
MINI SNAKE 27 MAG:
Magnetic mount
Suitable Accessories:
Connector: UHF-male (PL-259) (P/N: 2505600.00)
