MADE IN ITALY since 1972

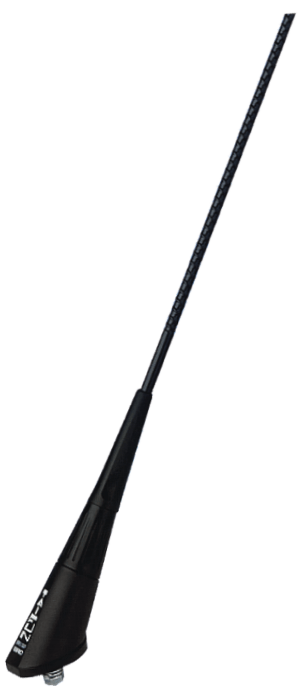

TAIFUN 27


Product Number:
P/N: 2204715.00 TAIFUN 27
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 27.5 MHz Tunable
Systems: CB 27MHz
Bandwidth: ≥ 490KHz @ SWR ≤ 2
Max Power: 10 Watts (CW) continuous
30 Watts (CW) short time
Cable lenght / type: 4 m (13.12 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Copper, Brass, Fiberglass, Nylon
Height (approx): 530 mm / 1.74 ft
Weight (approx): 340 gr / 0.75 lb
Mounting type: Thru-Hole
