Product Number:

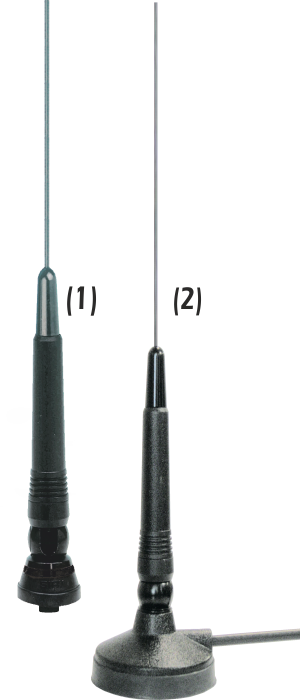

2208306.38	MICRO 60 S
2208306.73	MICRO 60 S MAG

Electrical Data:
Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 27.5 MHz Tunable
Systems:	CB 27MHz
Bandwidth:	≥ 800KHz @ SWR ≤ 2
Max Power:	10 Watts (CW) continuous 30 Watts (CW) short time
Cable lenght / type:	MICRO 60 S: 4 m (13.12 ft) / RG58 MICRO 60 S MAG: 3 m (9.84 ft) / RG58
Connector:	MICRO 60 S: Not supplied MICRO 60 S MAG: UHF-male (PL-259)

Mechanical Data:
Materials:	Copper, Stainless Steel 17/7 PH, Thermoplastic UV stabilized
Height (approx):	MICRO 60 S: 520 mm / 1.71 ft MICRO 60 S MAG: 520 mm / 1.71 ft
Weight (approx):	MICRO 60 S: 410 gr / 0.9 lb MICRO 60 S MAG: 410 gr / 0.9 lb
Mounting type:	MICRO 60 S: Thru-Hole MICRO 60 S MAG: Magnetic mount
