Features:
New PATENTED design

Product Number:

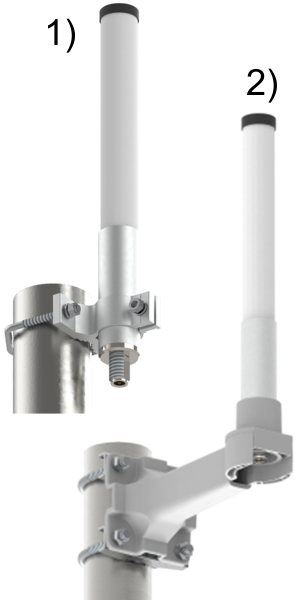

2118020.00	SO 5G 2-8DBI N-F
2118020.00/FT7	SO 5G 2-8DBI N-F FT7 Bracket

Electrical Data:
Type:	Wide Band Dipole
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	650÷960 MHz, 1.7÷2.7 GHz, 3.3÷4.2 GHz (5G, 4G-LTE, W-lan etc.)
Systems:	GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, 5G (3.4-3.8GHz), 5G
Gain:	650÷960 MHz =2.1 dBi 1.7÷2.7 GHz= 4÷6 dBi 3.3÷4.2 GHz= 6÷8 dBi
Max Power:	10 Watts @ 650 ÷ 960 MHz 5 Watts @ 1.7 ÷ 4.2 GHz
Connector:	N-female

Mechanical Data:
Materials:	Anodized Aluminium, Chromed brass, Stainless steel, Fiberglass, Thermoplastic UV stabilized, PCB
Height (approx):	SO 5G 2-8DBI N-F: 320 mm mm / 1.05 ft SO 5G 2-8DBI N-F FT7 Bracket: 370 mm / 1.21 ft
Weight (approx):	SO 5G 2-8DBI N-F: 380 gr / 0.84 lb SO 5G 2-8DBI N-F FT7 Bracket: 680 gr / 1.5 lb
Mounting type:	SO 5G 2-8DBI N-F: On-Mast SO 5G 2-8DBI N-F FT7 Bracket: On-Mast, On-Wall
