Features:
New PATENTED antenna

Product Number:

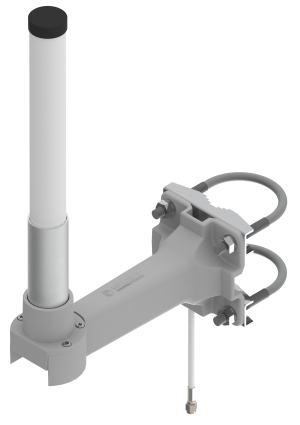

2118120/5SMA	SO 5G 2-8DBI FT7

Electrical Data:
Type:	Wide Band Dipole
Polarization:	Linear vertical
Frequency range:	650÷960 MHz, 1.7÷2.7 GHz, 3.3÷4.2 GHz
Systems:	GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, 5G (3.4-3.8GHz), 5G
Gain:	650÷960 MHz =2.1 dBi 1.7÷2.7 GHz= 4÷6 dBi 3.3÷4.2 GHz= 6÷8 dBi
Max Power:	10 Watts @ 650 ÷ 960 MHz 5 Watts @ 1.7 ÷ 4.2 GHz
Cable lenght / type:	5 m (16.4 ft) / Low loss
Connector:	SMA-female

Mechanical Data:
Materials:	Anodized Aluminium, Chromed brass, Stainless steel, Fiberglass, Thermoplastic UV stabilized, PCB
Dimensions (approx):	370 x 200 x 90 mm / 1.21 x 0.66 x 0.3 ft
Weight (approx):	970 gr / 2.14 lb
Mounting type:	On-Mast, On-Wall
