SD-Dipole

Product Number:
2105301.00 SD-Dipole
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.5 ... 30 MHz Tunable
Systems: 10m-HAM
Gain: 0 dBd, 2.15 dBi
Bandwidth: ≥ 3.5MHz @ SWR ≤ 2
Max Power: 1000 Watts (CW) continuous
3000 Watts (CW) short time
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Galvanized steel, Zamak
Height (approx): 5582 mm / 18.31 ft
Weight (approx): 2560 gr / 5.64 lb

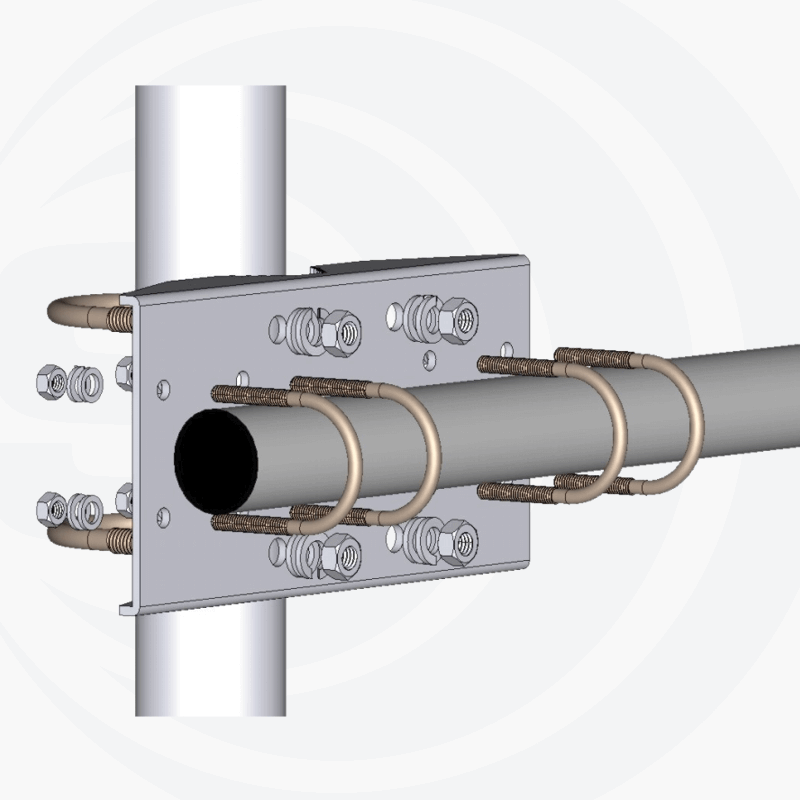

Mounting type: On-Mast
